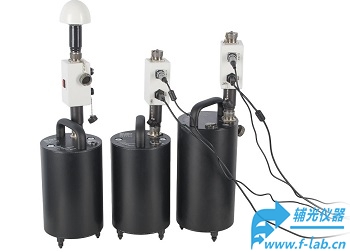

MEASURING CHANNEL SPECIFICATIONS |
|
Direction of measuring axes |
Measuring axis Z is orthogonal to the base and directed from the base to the top, and the X and Y axes are parallel to the base |
|
Nominal operating frequency range for measuring axes X, Y, Z: |
0.3 to 400 Hz |
|
Nominal sensitivity |
0.5 V/(m/s2) |
The limits of permissible relative error of measurement along measuring axes X, Y, Z, up to:
– in 0.3 to 1 Hz frequency range
– in 1 to 100 Hz frequency range
– in 100 to 400 Hz frequency range |
±10 %
±4 %
±10% |
|
Maximum measured value |
20 m/s2 |
|
Integrated noise in the operating frequency range, max. |
4•10−5 m/s2 |
|
Relative transverse penetration factor at 20 Hz, max. |
1 % |
|
Sampling frequency for channels |
50, 100, 250, 500, 1,000, 2,500 Hz |
|
Monitoring the status of primary transducer |
|
|
Integrated system of electrical excitation of sensing elements (X, Y, Z axes) using the actuator |
Yes |
|
Power supply monitoring of primary transducer |
Yes |
|
Standalone mode |
|
Offline operation, min. |
10 hrs |
|
Full charge time of internal battery |
18 hrs |
|
Battery type |
Lead |
|
Integrated non-volatile memory |
32 GB |
|
Time of recording to internal memory card at 500 Hz sampling frequency |
Over 1,000 hrs |
|
Synchronization parameters |
|
Synchronization type |
GPS or PTP (IEEE1588) |
|
Clock accuracy |
0.1 ppm |
|
General specifications |
|
Power supply voltage |
9 to 18 V |
|
Power consumption |
4 W |
|
Data interface |
Ethernet and USB 1.1 Full Speed |
|
Dust and moisture protection class |
IP68 |
|
MTBF |
10,000 hrs |
|
Average service life |
10 years |
|
Weight (without panel), max. |
6.5 kg |
|
Dimensions (without panel), max. |
Base diameter: 170 mm
Height: 250 mm |
|
Operating temperature range |
−20 to +60 °C (offline version)
−40 to 60 °C (stationary version) |
