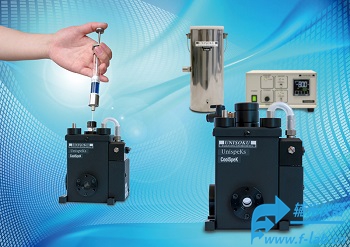

这款
低温恒温器放置在
光谱仪的样品室中,使您能够在低温条件下获得样品溶液的吸收光谱、荧光光谱或圆二色光谱信息。
低温恒温器使用液氮作为冷却剂，温度范围为-80°C至+100°C。
![$title]( "$title")
低温恒温器规格参数
| Liquid Nitrogen Container |
Stainless-steel dewar vessel, 2L |
| Structure |
Cell holder made of aluminum, with foamed urethane used as insulator |
| Optical Window |
3 sides, made of synthetic quartz |
| Compatible Cell |
Four-side transparent cell, with outer dimension of 12.5 mm × 12.5 mm |
| Temperature Control |
Flow control of liquid nitrogen by an automatic valve |
| Temperature Range |
-80°C ~ +100°C |
| Temperature Accuracy |
±1°C or set up temperature ±0.5%, whichever is larger. |
| Quantity of Dew Condensation |
Less than 0.1 OD/hour at -80°C with TSP-1000 system |
| Temperature Detection |
Pt100, Resistance thermometer |
| Functions |
Two heaters are included: One is to prevent dew condensation on optical windows. The other is for temperature elevation. |
| Option |
Stirrer, Various base adaptors for measuring, Cell adaptor (light path length: 1 mm, 2 mm) |
| External Size |
H146.5 × W90 × D111 mm |
适合的光谱仪器规格型号
- UNISOKU RSP-1000/TSP-1000
- Agilent Technologies Agilent8453/Cary 8454
- Agilent Technologies CARY50/60
- Beckman DU-7400
- JASCO V-500/600/700 Series
- JASCO FP-6000/8000 Series
- JASCO J-720/820/1500
- HITACHI U-2000/3000/4000 Series
- HITACHI F-4500/7000
- Horiba FluoroMax/Log
- Horiba FluoroCube
- Perkin Elmer Lambda Series
- SHIMADZU UV1800/2000/3000 Series
- SHIMADZU RF-5300/6000
- Sinco S-3100
- Edinburgh Instruments FLS920/FLS1000
- Edinburgh Instruments LP980(TAS)
*FLS adaptor "product code F-5376" manufactured by EI separately required
